Cutting-edge engineering solutions for sustainable development
Explore our comprehensive engineering solutions
Explore our range of products by category
Production facility - Hanoi, Vietnam
Our comprehensive range of lifting solutions includes overhead cranes, jib cranes, gantry cranes, electric chain hoists, winches, and transfer carts designed for maximum efficiency and safety in material handling operations.
Ideal for light to medium duty applications with spans up to 30 meters.
Designed for heavy-duty applications with higher lifting capacities.
Space-saving solution for facilities with height restrictions.
Provide flexible rotation for precise material positioning.
Freestanding cranes for outdoor applications or areas without supporting structures.
Combination of gantry and overhead crane features for versatile applications.
| Product | Capacity | Lifting Height | Lifting Speed | Work Class |
|---|---|---|---|---|
| ATTEC - ACH Model | 250Kg - 2000Kg | 3 - 12m | 4, 5, 8, 10 m/min (Dual Speed) | 1Am - 3m |
| SWF Germany Winch | 250Kg - 5000Kg | 3 - 40m | 5, 8, 10 m/min (Dual Speed) | 1Am - 4m |
| Rail Transfer Cart | 5 - 250 tons | - | - | - |
| Battery/Cable Transfer Cart | 5 - 300 Tons | - | - | - |
ATTEC - ACH model
OVERHEAD - DOUBLE: DG
SWF GERMANY WINCH
RAIL – TRANSFER CART
Production facility - Hai Duong, Vietnam
Our prefabricated steel buildings offer durable, cost-effective, and quick-to-erect solutions for various industrial, commercial, and residential applications.
Custom-designed industrial buildings with wide spans, high ceilings, and optimal space utilization for manufacturing and storage facilities.
Steel-framed structures for commercial and residential high-rise buildings offering strength, flexibility, and faster construction timelines.

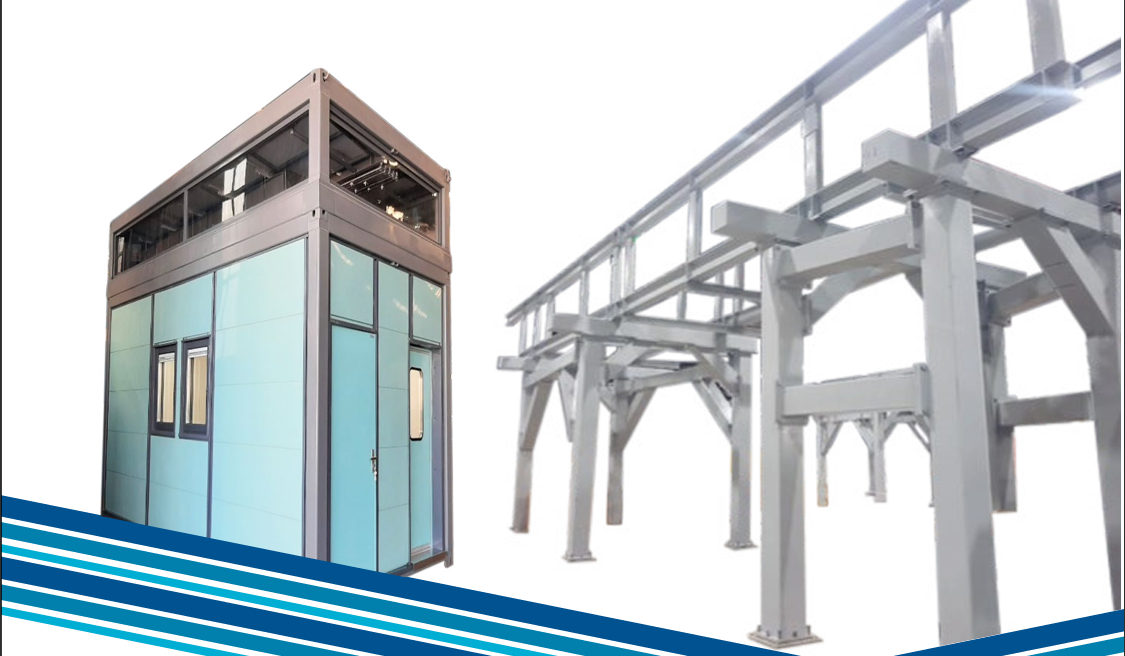

Modular and portable solutions made from shipping containers for temporary or permanent accommodation and office spaces.
Production facility - Shandong, China
High-quality structural steel products for construction, infrastructure, and industrial applications.
Precision-rolled steel with excellent surface finish and dimensional accuracy.
Durable steel plates with high strength for structural applications.
Structural beams with optimal strength-to-weight ratio for framing systems.
L-shaped structural members for bracing, framing, and support applications.
C-shaped structural members for purlins, girts, and framing applications.
Cold Rolled Steel Coils
I-Beam/H-Beam Steel
Angle Steel

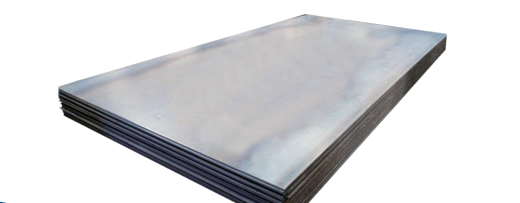

Hot Rolled Carbon Steel Plates

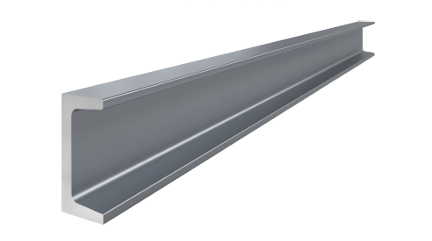

Channel Steel
Production facility - Hanoi, Vietnam
Comprehensive range of power transformers for distribution and transmission applications, designed for reliability and efficiency.
| Capacity (kVA) | No-load Loss (W) | Load Loss (W) | Impedance Voltage (%) | Sound Level (dB) |
|---|---|---|---|---|
| 50 | 190 | 1150 | 4 | 45 |
| 100 | 320 | 1850 | 4 | 48 |
| 160 | 430 | 2400 | 4 | 50 |
| 250 | 550 | 3100 | 4 | 52 |
| 400 | 760 | 4300 | 4 | 55 |
| 630 | 1000 | 5800 | 6 | 57 |
| 1000 | 1400 | 8500 | 6 | 60 |
Specifications: Voltage: 36(22)/0.4kV • Vector group: Y(Dyn12(11) • Tapping range: ±2x2.5%
| Capacity (kVA) | No-load Loss (W) | Load Loss (W) | Impedance Voltage (%) | Weight (kg) |
|---|---|---|---|---|
| 50 | 190 | 1150 | 4 | 370 |
| 100 | 320 | 1850 | 4 | 525 |
| 160 | 430 | 2400 | 4 | 675 |
| 250 | 550 | 3100 | 4 | 890 |

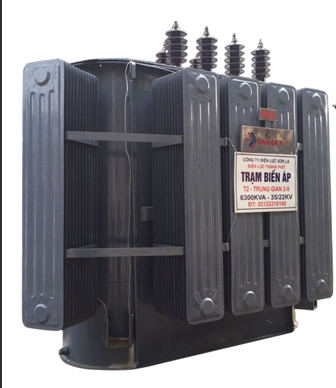

DRY-TYPE CAST RESIN TRANSFORMER
Single Phase Transformer
Production facility - Jiangsu, China
Comprehensive range of power, communication, and specialty cables for various applications including solar energy systems.
Low voltage power cables for building wiring and industrial applications.
Data and telecommunications cables for voice and data transmission.
Specialized cables designed for photovoltaic systems and solar applications.
Building wires for fixed installations in domestic and commercial buildings.
Production facility - Vietnam

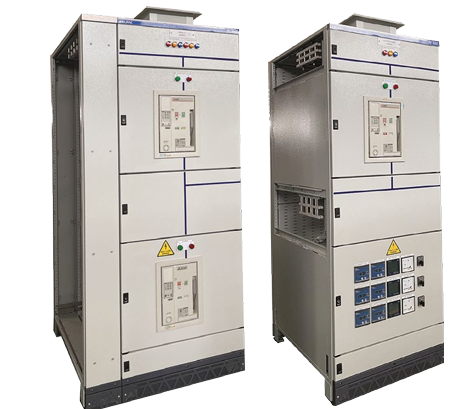

Comprehensive range of low voltage and medium voltage switchgear, control panels, and circuit protection solutions.
VELPAC series switchboards designed for reliable power distribution and motor control applications.
F1A, F2A, F1B, F2B
Feeder
OFW-R
PFC-xx
Incoming, Outgoing, Coupling up to 6300A
F1A: 1 ACB in cubicle
F1B: 1 MCCB in cubicle
ACB up to 6300A, 3/4 poles, fixed or Drawout type
MCCB up to 630A-1600A, 3/4 poles, fixed or Drawout type
Cubicle height: 2200mm, 2280mm
Main busbar up to 13000A, at the top or the bottom
Cable connection from the top or bottom
Power Cubical: F1A, F2A, F1B, F2B
Outgoing Cubicle, Fixed Type: Feeder
Contact us today for pricing, specifications, and delivery information for any of our engineering products.
